- Original title: [SOLVED MYSELF] Galv's MV Message Styles & MV Event Spawner
- Original author: p0_boy
- Original date: August 9, 2019
- Source thread: https://forums.rpgmakerweb.com/threads/solved-myself-galvs-mv-message-styles-mv-event-spawner.111942/
- Source forum path: Game Development Engines > RPG Maker Javascript Plugins > Javascript/Plugin Support
Summary
Howdy again, folks- New day, new challenge. I hope that you can help I have been using Galv's MV Message Styles plug-in- here are some excerpts from the plug-in help to give a better idea of how it works: The main purpose of this plugin is to allow your "Show Text" message boxes to have a different style to other windows in the game. The plugin settings have a variety of visual settings you can tweak, and in addition using a text code in Show Text messages will allow you...
Archived First Post
Howdy again, folks-
New day, new challenge. I hope that you can help
I have been using Galv's MV Message Styles plug-in- here are some excerpts from the plug-in help to give a better idea of how it works:
In addition to the examples above, \pop[0] will "target the event [that] the Show Text command is used [in]" (I will come back to this later).
The plug-in is pretty great, except that it doesn't work with $gameMessage.add(), and can only be set through the Show Text command in the event editor.
This means that a script call like:
won't work with the plug-in.
I wrote a clunky workaround that "extends" the plug-in a little bit. It consists of a Common Event:
And a JS plug-in (GALV_MessageStyles_Extended), that includes a few aliases of Galv's functions, as well as ShowText_Intercept() and $.ShowText():
ShowText_Intercept() "intercepts" (duh) Galv.Mstyle.checkTarget() and allows me to use \pop[vX] to inject a variable (X) into the mix (hence \pop[v17] in the common event).
Finally there's $.ShowText(), which handles the aforementioned common event:
This all works under normal circumstances.
I can do a script call like:
or
The problem I run into is when I try to use $.ShowText() with dynamic events using another of Galv's plug-ins- MV Event Spawner.
Because the new events spawned also have dynamically generated event IDs, I run into problems using $.ShowText() in both of the following scenarios:
(which is equivalent to MessageStyle code \pop[0])
and
(which is equivalent to MV Message Styles code \pop[eventId])
In both cases, MV Message Styles ends up referring to Game_Interpreter rather than the event itself and so the Message Window appears at the bottom of the screen rather than floating by the event that called the script.
I can get the dynamically created event's ID and coordinates and store it in a variable if I put the following script call in its Autonomous Movement / Custom Movement Route commands list:
The script call creates and updates an object in which the spawned event's x and y coordinates (in this case- 48, 480) are stored as an array nested in a key from its event ID (5), nested in a key from its map ID (2), which is then stored in a variable (14):
But my problem now is, how do I access this information from the spawned event's Event Contents list so that I can then use it in Galv.Mstyles_Extended.ShowText()?
I can't just do something like changing the Custom Movement Route script call to:
and then:
because these commands are being called by spawned events that often have multiple instances on a map, so using a static variable would cause an overlap and then confusion in the execution of the function.
Does anybody know of a way that I would be able to solve this problem?
I am sorry for the lengthy explanation but I thought it might be helpful to present all parts to perhaps aid in coming up with a solution.
Thank you in advance for taking the time to help!
EDIT 08/09/2019 (5:21 PM [GMT +8])
Solved it myself.
Since these message boxes appear when the player is speaking to an event, it means that the player will be standing next to the event when the action occurs.
With this information, I wrote the following function and added it to my plug-in:
Yeesh.
New day, new challenge. I hope that you can help
I have been using Galv's MV Message Styles plug-in- here are some excerpts from the plug-in help to give a better idea of how it works:
In addition to the examples above, \pop[0] will "target the event [that] the Show Text command is used [in]" (I will come back to this later).
The plug-in is pretty great, except that it doesn't work with $gameMessage.add(), and can only be set through the Show Text command in the event editor.
This means that a script call like:
Code:
let test_message = `\pop[` + $gameVariables.value(14) + `]son, i'm surprised you run with them.`);

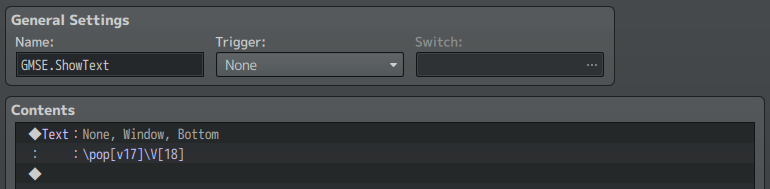

$gameMessage.add(test_message);I wrote a clunky workaround that "extends" the plug-in a little bit. It consists of a Common Event:
And a JS plug-in (GALV_MessageStyles_Extended), that includes a few aliases of Galv's functions, as well as ShowText_Intercept() and $.ShowText():
Code:
function ShowText_Intercept(text_to_parse) {
let result = String.raw`${text_to_parse}`;
if (~text_to_parse.toLowerCase().indexOf(String.raw`\pop[v`)) {
let temp = [];
temp[0] = text_to_parse.replace(/\\/g,`_`);
temp[1] = temp[0].split(`_pop[v`);
temp[2] = temp[1][1].substr(0, temp[1][1].indexOf(`]`));
temp[3] = temp[1][0] + `_pop[` + $gameVariables.value(Number(temp[2])) + temp[1][1].substr(temp[1][1].indexOf(`]`));
temp[4] = String.raw`${("_pop" + String.fromCharCode(92) + "[v" + temp[2] + String.fromCharCode(92) + "]").replace(/_/g,String.fromCharCode(92))}`;
$.pop_reg_ex = temp[4];
result = String.raw`${temp[3].replace(/_/g,String.fromCharCode(92))}`;
}
return result;
};ShowText_Intercept() "intercepts" (duh) Galv.Mstyle.checkTarget() and allows me to use \pop[vX] to inject a variable (X) into the mix (hence \pop[v17] in the common event).
Finally there's $.ShowText(), which handles the aforementioned common event:
Code:
$.ShowText = function(message, target_type = 0) {
$gameVariables.setValue(18, message);
$gameVariables.setValue(17, target_type);
$gameTemp.reserveCommonEvent(2);
};This all works under normal circumstances.
I can do a script call like:
Code:
Galv.Mstyle_Extended.ShowText("you cursed it but rehearsed it.", -1);
Code:
Galv.Mstyle_Extended.ShowText("i drop unexpectedly like bird sh-t.", [($gamePlayer._x * 48) + 24, ($gamePlayer._y * 48) - 24]);The problem I run into is when I try to use $.ShowText() with dynamic events using another of Galv's plug-ins- MV Event Spawner.
Because the new events spawned also have dynamically generated event IDs, I run into problems using $.ShowText() in both of the following scenarios:
Code:

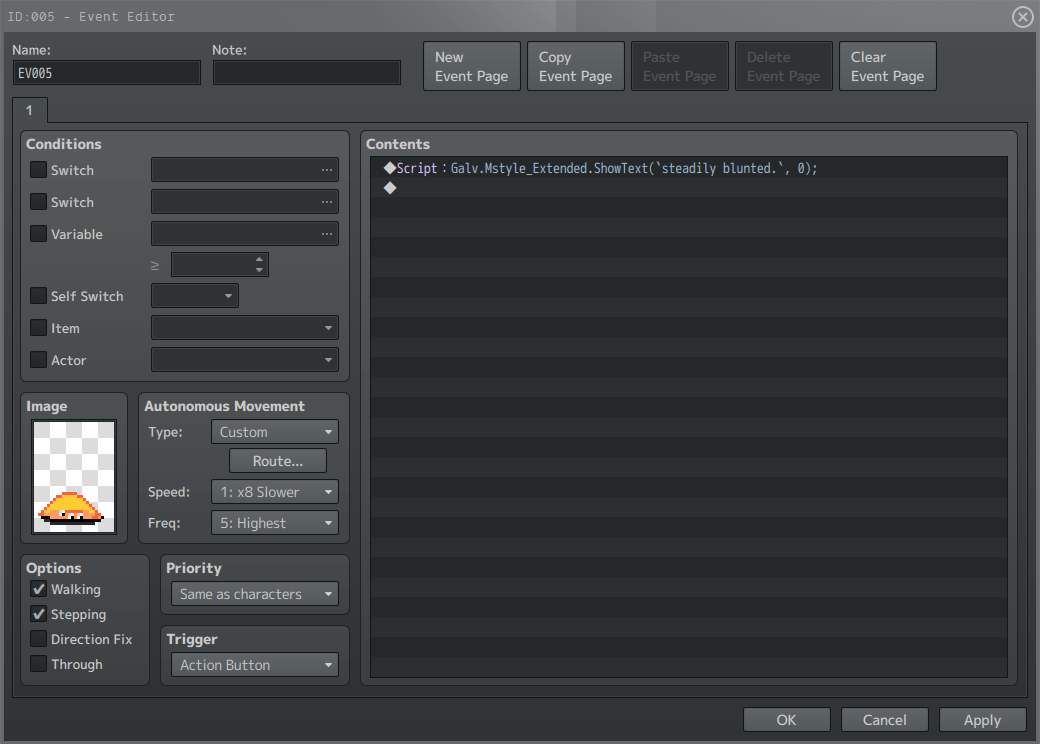

Galv.Mstyle_Extended.ShowText(`steadily blunted`, 0);(which is equivalent to MessageStyle code \pop[0])
and
Code:

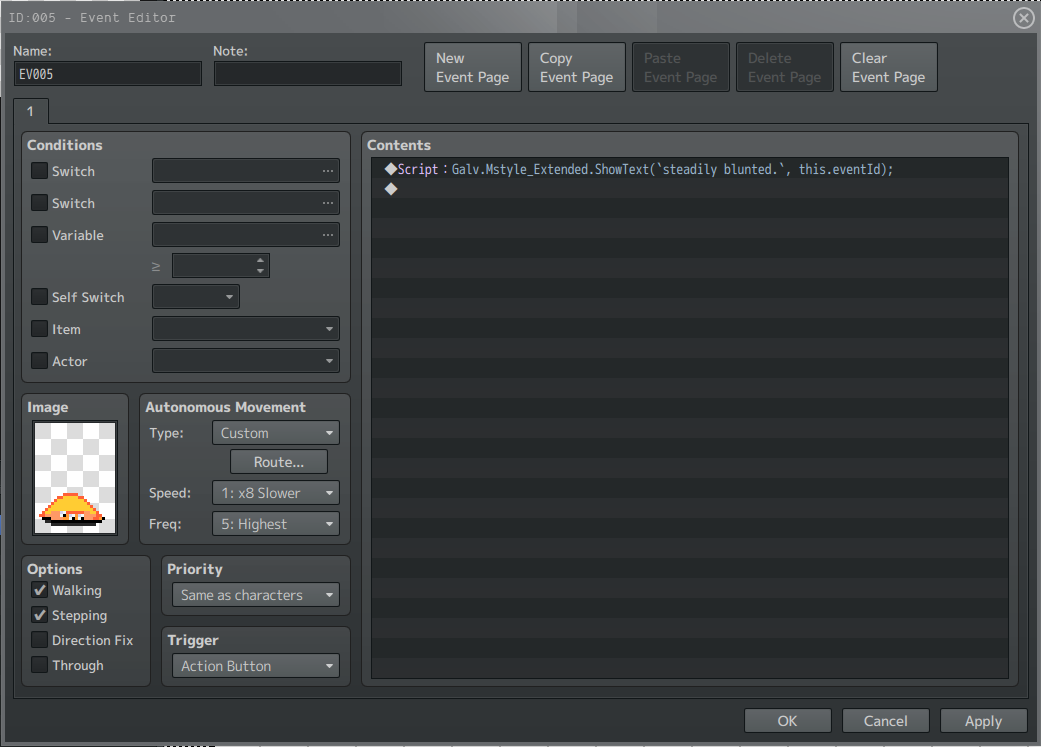

Galv.Mstyle_Extended.ShowText(`steadily blunted`, this.eventId);(which is equivalent to MV Message Styles code \pop[eventId])

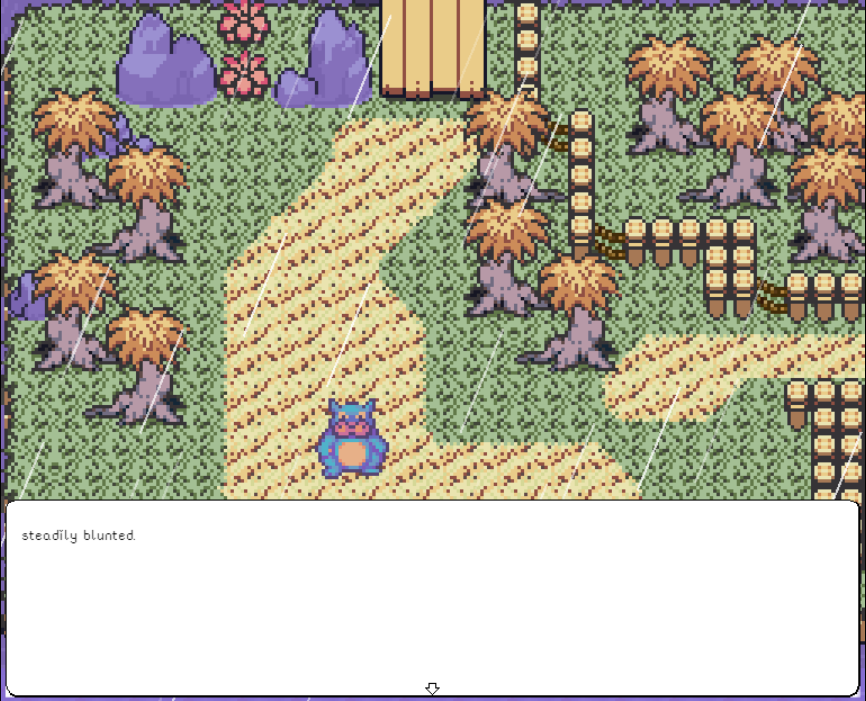

In both cases, MV Message Styles ends up referring to Game_Interpreter rather than the event itself and so the Message Window appears at the bottom of the screen rather than floating by the event that called the script.

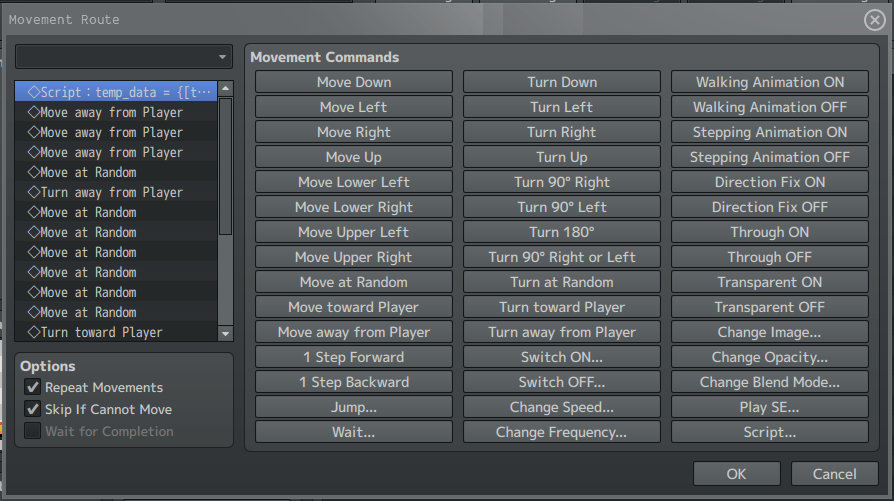

I can get the dynamically created event's ID and coordinates and store it in a variable if I put the following script call in its Autonomous Movement / Custom Movement Route commands list:
Code:
let temp_data = {[this._spawnEventId]: {}}; temp_data[this._spawnEventId] = {[this._mapId]: {[this._spawnEventId]: [(this._x * 48), (this._y * 48)]}}; $gameVariables.setValue(14, temp_data[this._spawnEventId]); delete temp_data[this._spawnEventId];The script call creates and updates an object in which the spawned event's x and y coordinates (in this case- 48, 480) are stored as an array nested in a key from its event ID (5), nested in a key from its map ID (2), which is then stored in a variable (14):
But my problem now is, how do I access this information from the spawned event's Event Contents list so that I can then use it in Galv.Mstyles_Extended.ShowText()?
I can't just do something like changing the Custom Movement Route script call to:
Code:
temp_data = [(this._x * 48), (this._y * 48)]; $gameVariables.setValue(14, temp_data); delete temp_data;
Code:
Galv.Mstyle_Extended.ShowText(`ain't no amateurs here, i damage and tear...`, $gameVariables.value(14));Does anybody know of a way that I would be able to solve this problem?
I am sorry for the lengthy explanation but I thought it might be helpful to present all parts to perhaps aid in coming up with a solution.
Thank you in advance for taking the time to help!
EDIT 08/09/2019 (5:21 PM [GMT +8])
Solved it myself.
Since these message boxes appear when the player is speaking to an event, it means that the player will be standing next to the event when the action occurs.
With this information, I wrote the following function and added it to my plug-in:
Code:
$.detectEventID = function() {
let result = 0;
let px = $gamePlayer.x;
let py = $gamePlayer.y;
switch($gamePlayer.direction()) {
case 2: // down
result = $gameMap.eventIdXy(px, py + 1);
break;
case 4: // left
result = $gameMap.eventIdXy(px - 1, py);
break;
case 6: // right
result = $gameMap.eventIdXy(px + 1, py);
break;
case 8: // up
result = $gameMap.eventIdXy(px, py - 1);
break;
}
return result;
};Yeesh.
