Popup Window v1.2d is cut off and I can't figure out why

BMM Archive · July 15, 2026

Preserved forum archive. This topic stores the original first post and locally mirrored RPG Maker Web attachments when available. It is posted by the BMMPlay archive account, not by the original creator.

Original Source

  • Original title: Popup Window v1.2d is cut off and I can't figure out why
  • Original author: Tw0Face
  • Original date: June 30, 2024
  • Source thread: https://forums.rpgmakerweb.com/threads/popup-window-v1-2d-is-cut-off-and-i-cant-figure-out-why.169913/
  • Source forum path: Game Development Engines > Ruby Game System (RGSS) Scripts > RGSSx Script Support

Summary

I've set up 3 different popups with V.M of D.T Popup Window v1.2d. However, it only works for one of them. The others have their popup window being cut off at the side and I spent hours trying to figure out the reason, but I cannot tell what is the problem here. I have 3 examples that are the same text size and almost the same text lenght but they behave completely differently. I can't figure out what's wrong here, so please if anyone is able to help me, I...

Archived First Post

I've set up 3 different popups with V.M of D.T Popup Window v1.2d. However, it only works for one of them. The others have their popup window being cut off at the side and I spent hours trying to figure out the reason, but I cannot tell what is the problem here.

I have 3 examples that are the same text size and almost the same text lenght but they behave completely differently.

I can't figure out what's wrong here, so please if anyone is able to help me, I highly appreciate.
I also added a Demo below to show the problem.

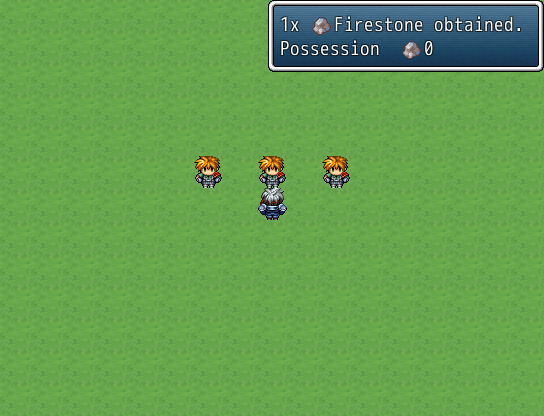

First Example
Works fine

Code:
pop_up(['1x \i[350]Firestone obtained.',
'Possession  \i[350]\v[25]'],0,268,0)
Protected download

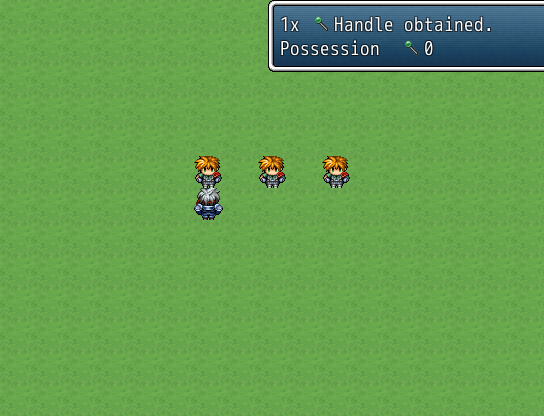

Second Example
Window is being cut off at the side

Code:
pop_up(['1x \i[2888]Handle obtained.',
'Possession  \i[2888]\v[30]'],0,268,0)
Protected download

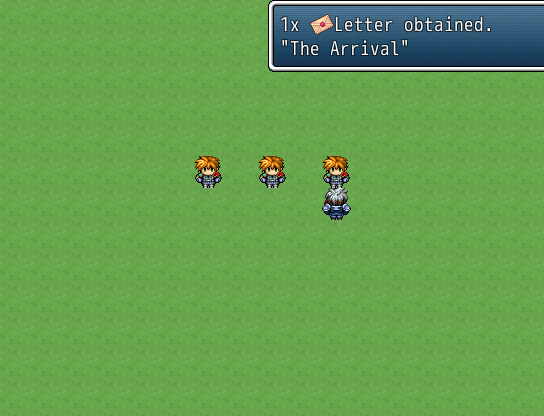

Third Example
Window is being cut off at the side

Code:
pop_up(['1x \i[4436]Letter obtained.',
'"The Arrival"'],0,268,0)
Protected download


Ruby:
#Popup Window v1.2d
#----------#
#Features: Create a popup window for anything you want! How magical!
#
#Usage:    Script calls:
#           (In Events:)
#           pop_up(['text','text', ... ], timer(opt), x(opt), y(opt))
#           (Anywhere else:)
#           Popup.add(['text','text', ... ], timer(opt), x(opt), y(opt))
#
#          Examples:
#           pop_up(['\i[5] Mage class unlocked!!'])
#           pop_up(['\c[16] Class Change:\c[0]',
#                   ' Speak to any mysterious hermit to change class!'],240)
#
#   Escape codes not working? You have two options... switch to '' singe quotes
#    instead of "" double quotes, or double up on \\ slashes.
#----------#
#-- Script by: V.M of D.T
#
#- Questions or comments can be:
#    given by email: sumptuaryspade@live.ca
#    provided on facebook: http://www.facebook.com/DaimoniousTailsGames
#   All my other scripts and projects can be found here: http://daimonioustails.weebly.com/
#
#- Free to use in any project with credit given, donations always welcome!

$imported = {} if $imported.nil?
$imported[:Vlue_PopupWindow] = true

POPUP_DURATION = 180

class Popup_Window < Window_Base
  def initialize(text,timer,x,y)
    super(0,0,25,100)
    text.each do |string|
      temp_string = string.gsub(/\\[^invpgINVPG]\[\d{0,3}\]/) { "" }
      temp_string = temp_string.gsub(/\\i\[\d{0,3}\]/) { icon_width }
      temp_string = convert_escape_characters(temp_string)
      self.width = [text_size(temp_string).width+standard_padding*2+12,self.width].max
    end
    self.height = text.size * line_height + line_height
    if x.nil?
      self.x = Graphics.width / 2 - self.width / 2
    else
      self.x = x
    end
    if y.nil?
      self.y = Graphics.height / 2 - self.height / 2
    else
      self.y = y
    end
    @text = text
    @timer = timer
    create_contents
    refresh
    self.openness = 0
    open
  end
  def icon_width
    size = text_size(' ').width
    ' ' * (24 / size)
  end
  def refresh
    contents.clear
    yy = 0
    @text.each do |string|
      draw_text_ex(0,yy,string)
      yy += line_height
    end
  end
  def update
    super
    @timer -= 1
    close if @timer == 0
  end
end

module Popup
  def self.init
    @queue = []
  end
  def self.add(text, timer = POPUP_DURATION, x = nil, y = nil)
    @queue.push([text,timer,x,y])
  end
  def self.queue
    @queue
  end
end

Popup.init

class Scene_Base
  alias popupwin_preterminate pre_terminate
  alias popupwin_update update
  def update
    popupwin_update
    update_popup_window_text unless $popup.nil?
    return if Popup.queue.empty?
    if $popup.nil? or $popup.close?
      text = Popup.queue.pop
      $popup = Popup_Window.new(text[0], text[1], text[2], text[3])
    end
  end
#~   def update_popup_window_text
#~     $popup.update
#~     $popup.close if Input.trigger?(:C)
#~     if !$popup.disposed? and $popup.close?
#~       $popup.dispose
#~       $popup = nil
#~     end
#~ end
 def update_popup_window_text
    if $popup.disposed?
      $popup = nil
      return
    end
    $popup.update
    $popup.close if Input.trigger?(:C)
    if !$popup.disposed? and $popup.close?
      $popup.dispose
      $popup = nil
    end
  end

  def pre_terminate
    popupwin_preterminate
    $popup.visible = false unless $popup.nil?
  end
end

class Game_Interpreter
  alias popup_command_355 command_355
  def pop_up(text, timer = POPUP_DURATION, x = nil, y = nil)
    Popup.add(text, timer, x, y)
  end
  def command_355
    popup_command_355
    wait_for_popup #if SceneManager.scene.is_a?(Scene_Map)
  end
  def wait_for_popup
    Fiber.yield while !Popup.queue.empty? || $popup
  end
end
