(RGSS2) Names of some items not visible on custom store menu.

BMM Archive · July 15, 2026

Preserved forum archive. This topic stores the original first post and locally mirrored RPG Maker Web attachments when available. It is posted by the BMMPlay archive account, not by the original creator.

Original Source

  • Original title: (RGSS2) Names of some items not visible on custom store menu.
  • Original author: Darth Equus
  • Original date: September 22, 2020
  • Source thread: https://forums.rpgmakerweb.com/threads/rgss2-names-of-some-items-not-visible-on-custom-store-menu.127717/
  • Source forum path: Game Development Engines > Ruby Game System (RGSS) Scripts > RGSSx Script Support

Summary

Hello. Hope someone can help me with two slightly annoying problems. I'm using a custom script for a synthesis shop, which I posted a bounty to fix a major problem for, and it seems to be working fine now. The only issue I have now is that the names of any items below the window are either cut off or plain invisible in the list when scrolling down. (Also, the cursor always goes back to the top of the list upon synthesizing an item): { "lightbox_close": "Close", "lightbox_next": "Next",

Archived First Post

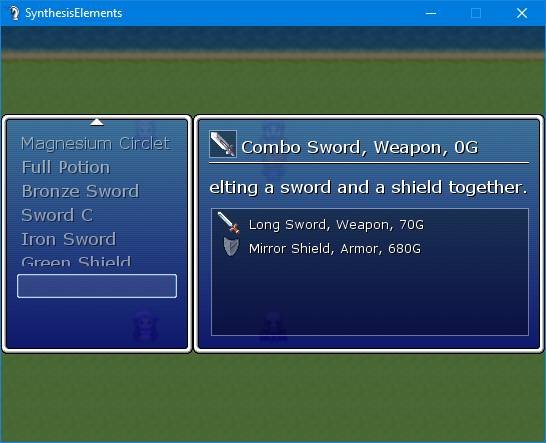

Hello. Hope someone can help me with two slightly annoying problems. I'm using a custom script for a synthesis shop, which I posted a bounty to fix a major problem for, and it seems to be working fine now. The only issue I have now is that the names of any items below the window are either cut off or plain invisible in the list when scrolling down. (Also, the cursor always goes back to the top of the list upon synthesizing an item):

Protected download

At the moment, I can't commission paid work to correct it, but decided to post it here in case it's an easy fix. Can anyone please give me a hand fixing these issues?

Here's the script I'm using:

Ruby:
#==============================================================================
# ** Crafting System.
#------------------------------------------------------------------------------
# The system works in the following way:
#
#     The items that can be crafted are displayed at all times even if the
#     player doesn't have the required items to craft it.
#     Once the player obtains the item, it is removed from the list.
#
#     To call the scene, use the following line in a call script command:
#        call_craft
#
#==============================================================================


module Crafting
  # Title displayed in the crafting command window.
  Title   = 'Crafting List'
  # Recipes for the crafting system.
  Recipes = {
  # [type, id of the final item] => [[type, id of ingredients]]
  [2, 146] => [[2, 74], [0, 113]],
  # [type, id of the final item] => [[type, id of ingredients]]
  [2, 147] => [[2, 84], [0, 113]],
  # [type, id of the final item] => [[type, id of ingredients]]
  [2, 148] => [[2, 93], [0, 113]],
  # [type, id of the final item] => [[type, id of ingredients]]
  [2, 149] => [[2, 103], [0, 113]],
  # [type, id of the final item] => [[type, id of ingredients]]
  [1, 200] => [[0, 500], [0, 501]]
  }
end


#==============================================================================
# ** Window_CraftCommand
#------------------------------------------------------------------------------
#  This window deals with general command choices in the crafting window.
#==============================================================================
class Window_CraftCommand < Window_Selectable
  #--------------------------------------------------------------------------
  # * Public Instance Variables
  #--------------------------------------------------------------------------
  attr_reader   :commands
  #--------------------------------------------------------------------------
  # * Object Initialization.
  #--------------------------------------------------------------------------
  def initialize(width, commands, column_max = 1, row_max = 0, spacing = 32)
    if row_max == 0
      row_max = (commands.size + column_max - 1) / column_max
    end
    super(0, 0, width, 240, spacing)
    @commands = commands
    @item_max = commands.size
    @column_max = column_max
    refresh
    self.index = 0
  end
  #--------------------------------------------------------------------------
  # * Refresh.
  #--------------------------------------------------------------------------
  def refresh
    self.contents.clear
    self.contents.draw_text(0, 0, self.width - WLH * 2, 32, Crafting::Title, 1)
    self.contents.fill_rect(1, 33, self.width - 2, 1, Color.new(0, 0, 0, 255))
    self.contents.fill_rect(0, 32, self.width, 1, Color.new(255, 255, 255))
    for i in 0...@item_max
      draw_item(i)
    end
  end
  #--------------------------------------------------------------------------
  # * Draw Item.
  #--------------------------------------------------------------------------
  def draw_item(index, enabled = true)
    rect = item_rect(index)
    rect.x += 4
    rect.width -= 8
    self.contents.clear_rect(rect)
    self.contents.font.color = normal_color
    self.contents.font.color.alpha = enabled ? 255 : 128
    self.contents.draw_text(rect, @commands[index])
  end
  #--------------------------------------------------------------------------
  # * Get rectangle for displaying items.
  #--------------------------------------------------------------------------
  def item_rect(index)
    rect = Rect.new(0, 0, 0, 0)
    rect.width = (contents.width + @spacing) / @column_max - @spacing
    rect.height = WLH
    rect.x = index % @column_max * (rect.width + @spacing)
    rect.y = (index / @column_max * WLH) + 48
    return rect
  end
  #--------------------------------------------------------------------------
  # * Stop.
  #--------------------------------------------------------------------------
  def stop
    @craft_animation = true
  end
  #--------------------------------------------------------------------------
  # * Play.
  #--------------------------------------------------------------------------
  def play
    @craft_animation = false
  end
  #--------------------------------------------------------------------------
  # * Determine if cursor is moveable.
  #--------------------------------------------------------------------------
  def cursor_movable?
    return false if (not visible or not active)
    return false if (index < 0 or index > @item_max or @item_max == 0)
    return false if (@opening or @closing)
    return false if @craft_animation
    return true
  end
end
class Game_System
  attr_accessor :equus_craft_done
  #--------------------------------------------------------------------------
  # * Initialize.
  #--------------------------------------------------------------------------
  alias equus_craft_ini initialize
  def initialize
    equus_craft_ini
    @equus_craft_done = []
  end
end
class Scene_Craft < Scene_Base
  #--------------------------------------------------------------------------
  # * Start processing.
  #--------------------------------------------------------------------------
  def start
    super
    create_menu_background
    create_command_window
    create_info_window
  end
  #--------------------------------------------------------------------------
  # * Termination Processing.
  #--------------------------------------------------------------------------
  def terminate
    super
    dispose_menu_background
    @command_window.dispose
    @info_window.dispose
    @recipe_sprite.bitmap.dispose if @recipe_sprite.bitmap
    @recipe_sprite.dispose
    @help_plane.bitmap.dispose if @help_plane.bitmap
    @help_plane.dispose
    @plane_viewport.dispose
    @recipe_viewport.dispose
    @congrats_sprite.bitmap.dispose if @congrats_sprite
    @congrats_sprite.dispose
  end
  #--------------------------------------------------------------------------
  # * Frame Update.
  #--------------------------------------------------------------------------
  def update
    super
    update_menu_background
    update_info_animations
    @command_window.update
    if @command_window.active
      update_command_selection
    end
  end
  #--------------------------------------------------------------------------
  # * Create Info Window.
  #--------------------------------------------------------------------------
  def create_info_window
    @recipe_scroll_c = Graphics.frame_rate
    @plane_scroll_c = Graphics.frame_rate
    @info_window = Window_Base.new(192, 88, 352, 240)
    @plane_viewport = Viewport.new(@info_window.x + 16, @info_window.y + 56, 320, 32)
    @help_plane = Plane.new(@plane_viewport)
    @plane_viewport.z = @info_window.z + 100
    @recipe_viewport = Viewport.new(@info_window.x + 16, @info_window.y + 96, 316, 120)
    @recipe_sprite = Sprite.new(@recipe_viewport)
    @recipe_viewport.z = @info_window.z + 100
    @congrats_sprite = Sprite.new
    @congrats_sprite.bitmap = Bitmap.new(544, 88)
    @congrats_sprite.opacity = 0
  end
  #--------------------------------------------------------------------------
  # * Create Command Window.
  #--------------------------------------------------------------------------
  def create_command_window
    @to_craft = []
    @names     = []
    @types     = []
    @handy     = []
    Crafting::Recipes.each {|k, c|
    #next if $game_system.equus_craft_done.include?([k[0], k[1]])
    real_item  = [$data_items, $data_weapons, $data_armors][k[0]][k[1]]
    @handy     << [k[0], k[1]]
    @types     << k[0]
    @names     << real_item.name
    @to_craft << [real_item, c]}
    @disabled = []
    @required = []
    @command_window = Window_CraftCommand.new(192, @names)
    @command_window.height = 240#416
    @command_window.y = 88
    @command_window.index = 0
    @to_craft.each {|craft| check_requirements(craft[0], craft[1])}
  end
  #--------------------------------------------------------------------------
  # * Check Requirements.
  #--------------------------------------------------------------------------
  def check_requirements(item, content)
    items   = []
    weapons = []
    armors  = []
    content.each {|i|
    real_item  = [$data_items, $data_weapons, $data_armors][i[0]][i[1]]
    [items, weapons, armors][i[0]] << real_item}
    [items, weapons, armors].each {|type|
    type.each {|req|
    @required[@to_craft.index([item, content])] ||= []
    @required[@to_craft.index([item, content])] << req
    if $game_party.item_number(req) <= 0
      @disabled[@to_craft.index([item, content])] = true
      @command_window.draw_item(@to_craft.index([item, content]), false)
    end}}
  end
  #--------------------------------------------------------------------------
  # * Process Crafting.
  #--------------------------------------------------------------------------
  def process_crafting(index)
    @required[index].each {|item| $game_party.lose_item(item, 1)}
    $game_party.gain_item(@to_craft[index][0], 1)
    $game_system.equus_craft_done << @handy[index]
    item = @to_craft[index][0]
    @command_window.index = 0
    @command_window.dispose
    create_command_window
    refresh_info
    congrats(item)
  end
  #--------------------------------------------------------------------------
  # * Congrats.
  #--------------------------------------------------------------------------
  def congrats(item)
    t = "You obtained #{item.name}!"
    @congrats_sprite.bitmap.clear
    @congrats_sprite.bitmap.draw_text(0, 0, 544, 88, t, 1)
    @congrats_sprite_stage   = 0
    @congrats_count = 60
  end
  #--------------------------------------------------------------------------
  # * Update Info Animations.
  #--------------------------------------------------------------------------
  def update_info_animations
    @congrats_sprite.update
    if @congrats_sprite_stage == 0
      @congrats_sprite.opacity = [@congrats_sprite.opacity + 5, 255].min
      if @congrats_sprite.opacity >= 255
        @congrats_sprite_stage = 1
      end
    elsif @congrats_sprite_stage == 1
      @congrats_count = [@congrats_count - 1, 0].max
      if @congrats_count <= 0
        @congrats_sprite_stage = 2
      end
    elsif @congrats_sprite_stage == 2
      @congrats_sprite.opacity = [@congrats_sprite.opacity - 5, 0].max
      if @congrats_sprite.opacity <= 0
        @congrats_sprite_stage = 3
      end
    end
    @recipe_viewport.rect.x = @info_window.x + 16
    @recipe_viewport.rect.y = @info_window.y + 96
    @recipe_scroll_c = [@recipe_scroll_c - 1, 0].max
    @plane_viewport.rect.x = @info_window.x + 16
    @plane_viewport.rect.y = @info_window.y + 56
    @plane_scroll_c = [@plane_scroll_c - 1, 0].max
    @plane_viewport.ox += 1 if @plane_scroll_c == 0
    if @recipe_scroll_c == 0
      if @recipe_sprite.bitmap.height > @recipe_viewport.rect.height
        dif = @recipe_sprite.bitmap.height - @recipe_viewport.rect.height
        @recipe_stage ||= 0
        if @recipe_sprite.oy < dif && @recipe_stage == 0
          @recipe_sprite.oy += 1
          if @recipe_sprite.oy == dif
            @recipe_scroll_c = Graphics.frame_rate
            @recipe_stage = 1
          end
        elsif @recipe_sprite.oy > 0 && @recipe_stage == 1
          @recipe_sprite.oy -= 1
          if @recipe_sprite.oy == 0
            @recipe_scroll_c = Graphics.frame_rate
            @recipe_stage = 0
          end
        end
      end
    end
  end
  #--------------------------------------------------------------------------
  # * Refresh Info.
  #--------------------------------------------------------------------------
  def refresh_info
    @recipe_scroll_c = Graphics.frame_rate
    @plane_scroll_c = Graphics.frame_rate
    @plane_viewport.ox = 0
    @recipe_sprite.oy = 0
    @recipe_stage = 0
    @info_window.contents.clear
    @info_window.contents.fill_rect(0, 33, 352, 1, Color.new(0, 0, 0))
    @info_window.contents.fill_rect(0, 32, 352, 1, Color.new(255, 255, 255))
    @info_window.contents.fill_rect(2, 32 * 2 + 14, 318, 128, Color.new(255, 255, 255, 96))
    @info_window.contents.fill_rect(3, 32 * 2 + 15, 316, 126, Color.new(0, 0, 0, 96))
    @info_window.contents.fill_rect(0, 0, 28, 28, Color.new(255, 255, 255, 96))
    @info_window.contents.fill_rect(1, 1, 26, 26, Color.new(0, 0, 0, 96))
    iconi = @to_craft[@command_window.index][0].icon_index
    @info_window.draw_icon(iconi, 2, 2, true)
    @recipe_sprite.bitmap = Bitmap.new(316, 24 * @required[@command_window.index].size)
    @recipe_sprite.bitmap.font.size = Font.default_size - 4
    @required[@command_window.index].each_with_index {|req, i|
    draw_icon_recipe(req, 8, 24 * i, $game_party.item_number(req) > 0)}
    price = @to_craft[@command_window.index][0].price
    desc  = @to_craft[@command_window.index][0].description
    type  = ['Item', 'Weapon', 'Armor'][@types[@command_window.index]]
    name  = @names[@command_window.index]
    text1 = 'Name: '
    text2 = 'Type: '
    text3 = 'Price: '
    text = "#{name}, #{type}, #{price}G"
    @info_window.contents.draw_text(32, 0, 304, 32, text, 0)
    ts = Bitmap.new(32, 32)
    tw = ts.text_size(desc).width + 4
    @help_plane.bitmap = Bitmap.new(tw, 32)
    ts.dispose
    @help_plane.bitmap.clear
    @help_plane.bitmap.draw_text(0, 0, tw, 32, desc, 0)
  end
  #--------------------------------------------------------------------------
  # * Draw Icon.
  #--------------------------------------------------------------------------
  def draw_icon_recipe(item, x, y, enabled = true)
    icon_index = item.icon_index
    bitmap = Cache.system("Iconset")
    rect = Rect.new(icon_index % 16 * 24, icon_index / 16 * 24, 24, 24)
    @recipe_sprite.bitmap.blt(x, y, bitmap, rect, enabled ? 255 : 128)
    itype  = 'Item'   if item.is_a?(RPG::Item)
    itype  = 'Weapon' if item.is_a?(RPG::Weapon)
    itype  = 'Armor'  if item.is_a?(RPG::Armor)
    iprice = item.price
    text   = "#{item.name}, #{itype}, #{iprice}G"
    @recipe_sprite.bitmap.draw_text(x + 32, y - 2, 300, 32, text)
  end
  #--------------------------------------------------------------------------
  # * Update Command Selection.
  #--------------------------------------------------------------------------
  def update_command_selection
    if @command_window.index != @old_command_window_index && @command_window
      @old_command_window_index = @command_window.index
      refresh_info
    end
    if Input.trigger?(Input::B)
      Sound.play_cancel
      $scene = Scene_Map.new
    elsif Input.trigger?(Input::C)
      if @disabled[@command_window.index]
        Sound.play_buzzer
        return
      end
      Sound.play_decision
      process_crafting(@command_window.index)
    end
  end
end
def call_craft
  $scene = Scene_Craft.new
end

Downloads / Referenced Files

Log in to download

Log in, then follow the RPG Maker Developers Group to see these download links.

Log in to download

Referenced Images / Attachments

Creator Claims / Removal

If you are the original creator and want this listing reassigned, edited, or removed, join BMMPlay and contact the moderators with proof that matches the original RPG Maker Web profile, linked GitHub, itch.io page, or another public creator identity.

#039#next#rpg-maker-archive#rgss-support

Replies (0)

No replies yet.

0 replies 1 view

Log in to reply.

User Avatar
