VXACEKeyboard Text Input

BMM_Archive · July 15, 2026

BMM_Archive

LEVEL 14 Crown 47,370

Preserved forum archive. This topic stores the original first post and locally mirrored RPG Maker Web attachments when available. It is posted by the BMMPlay archive account, not by the original creator.

Original Source

Original title: Keyboard Text Input
Original author: erpicci
Original date: February 11, 2015
Source thread: https://forums.rpgmakerweb.com/threads/keyboard-text-input.36828/
Source forum path: Game Development Engines > Ruby Game System (RGSS) Scripts > RGSS3 Scripts (RMVX Ace)

Summary

Text_Input 1.1 Author: erpicci Introduction This script allows the player to insert a medium-sized text by typing directly with the keyboard. Inserted text is returned as a string.

Archived First Post

Text_Input 1.1
Author: erpicci

Introduction

This script allows the player to insert a medium-sized text by typing directly with the keyboard. Inserted text is returned as a string.

Requires Neon Black's Keyboard Input Script to work.

It is completely free, both for commercial and non-commercial use. All you are asked to do is to give me credits for the script.

Features

Plug and play
Type directly from keyboard
Use enter to confirm your input
Use backspace to delete last character
Use "Esc" to quit the input mode (input process will result in an empty string)
No known compatibility issues
Integrates seamlessly with window system
Additional window configuration (position, size, opacity)

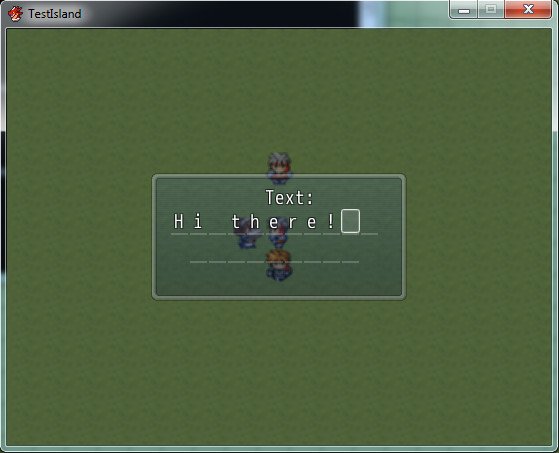

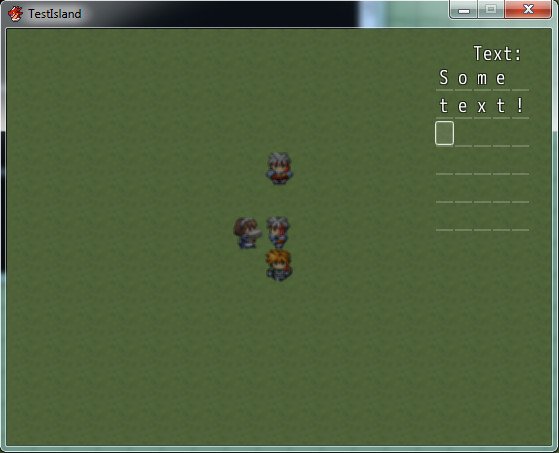

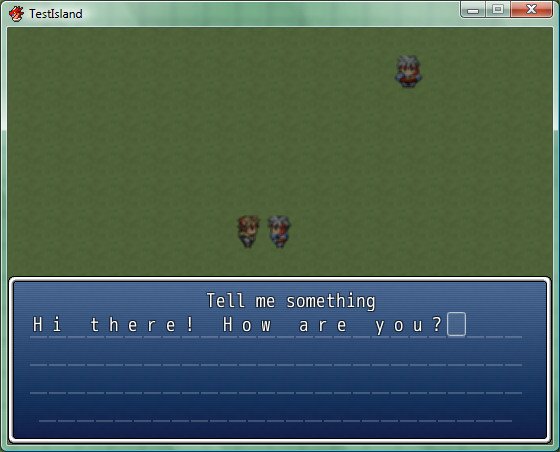

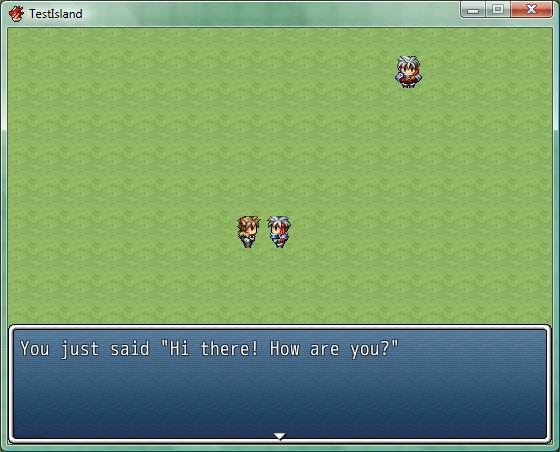

Screenshots
As simple as calling a script. These shots shows how to implement an echo message and how to use other options.

Protected downloadProtected downloadProtected downloadProtected download

How to Use

Be sure to have Neon Black's Keyboard Input Script installed.

Place this script in the "Materials" section of the scripts above main.

To insert a text using an event, create a script event like:

text_var = text_input("Window Title")

To have a script call the text input, use:

text_var = Scene_Text.read("Window Title")

Only window title is mandatory. As optional arguments, you can set:

alignment: "center" (default), "left", "right"
maximum number of character: default is 104
left-to-right: default is true, use false to get a right-to-left input
configuration object (see examples)

Examples

# Open a window whose title is "Talk to Bobby", text is centered,
# allows to enter up to 20 characters, writing is right-to-left
variable = Scene_Text.read("Talk to Bobby", "center", 20, false)

# Open a window whose title is "Tell me something", text is aligned
# to right, allows to enter up to 88 characters, writing is
# left-to-right (default)
variable = Scene_Text.read("Tell me something", "center", 88)

# Open a window whose title is "Insert text", text is centered
# (default), accepts up to 104 characters (default), writing is
# left-to-right (default)
variable = Scene_Text.read("Insert text")

# Open a window whose title is "Text:", text is centered, allows
# to enter up to 20 characters, writing is left-to-right,
# window is resized, centered in the screen and semi-transparent
config = Scene_Text_Config.new
config.width = 256
config.height = 128
config.verticalAlignment = "center"
config.horizontalAlignment = "center"
config.opacity = 64
variable = Scene_Text.read("Text:", "center", 20, true, config)

# Open a window whose title is "Text:", text is centered, allows
# to enter up to 30 characters, writing is left-to-right,
# window is resized, aligned on the top-right corner and fully transparent
config = Scene_Text_Config.new
config.width = 128
config.height = 256
config.verticalAlignment = "top"
config.horizontalAlignment = "right"
config.opacity = 0
variable = Scene_Text.read("Text:", "center", 30, true, config)

# Open a window whose title is "Text:", text is centered, allows to enter
# up to 20 characters, writing is left-to-right, window is partially
# transparent
config = Scene_Text_Config.new
config.opacity = 160
variable = Scene_Text.read("Text:", "center", 20, true, config)

Script

Code:

#==============================================================================
# ** Text Input script
#------------------------------------------------------------------------------
# author:  erpicci
# version: 1.1
# require: CP Keyboard Input script by Neon Black
#
#------------------------------------------------------------------------------
# * Introduction
#------------------------------------------------------------------------------
# This script allows the player to insert a medium-sized text by typing
# directly from the keyboard. Inserted text is returned as a string.
#
# Requires Neon Black's Keyboard Input Script to work.
#
# It is completely free, both for commercial and non-commercial use. All you
# are asked to do is to give me credits for the script.
#
#------------------------------------------------------------------------------
# * Installation
#------------------------------------------------------------------------------
# Be sure to have Neon Black's Keyboard Input Script installed.
# Place this script in the "Materials" section of the scripts above main.
#
# To insert a text using an event, create a script event like:
#   text_var = text_input("Window Title")
#
# To have a script call the text input, use:
#   text_var = Scene_Text.read("Window Title")
#
# Only window title is mandatory. As optional arguments, you can set:
#  * alignment: "center" (default), "left", "right"
#  * maximum number of character: default is 104
#  * left-to-right: default is true, use false to get a right-to-left input
#  * configuration object (see examples)
#
#------------------------------------------------------------------------------
# * Changelog and notes
#------------------------------------------------------------------------------
# -1.1:   Fixed a memoty leak
#
# -1.1rc: Added options to manipulate the text edit window (position, size,
#         opacity); manipulation is obtained through the new Scene_Text_Config
#         class. Backward compatibile.
#
#------------------------------------------------------------------------------
# * Examples
#------------------------------------------------------------------------------
#   # Open a window whose title is "Talk to Bobby", text is centered, allows
#   # to enter up to 20 characters, writing is right-to-left
#   variable = Scene_Text.read("Talk to Bobby", "center", 20, false)
#
#   # Open a window whose title is "Tell me something", text is aligned to
#   # right, allows to enter up to 88 characters, writing is left-to-right
#   # (default)
#   variable = Scene_Text.read("Talk to Bobby", "center", 20)
#
#   # Open a window whose title is "Insert text", text is centered (default),
#   # accepts up to 104 characters (default), writing is left-to-right (default)
#   variable = Scene_Text.read("Talk to Bobby")
#
#   # Open a window whose title is "Text:", text is centered, allows
#   # to enter up to 20 characters, writing is right-to-left,
#   # window is resized, centered in the screen and semi-transparent
#   config = Scene_Text_Config.new
#   config.width = 256
#   config.height = 128
#   config.verticalAlignment = "center"
#   config.horizontalAlignment = "center"
#   config.opacity = 64
#   variable = Scene_Text.read("Text:", "center", 20, true, config)
#
#   # Open a window whose title is "Text:", text is centered, allows
#   # to enter up to 30 characters, writing is right-to-left,
#   # window is resized, aligned on the top-right corner and fully transparent
#   config = Scene_Text_Config.new
#   config.width = 128
#   config.height = 256
#   config.verticalAlignment = "top"
#   config.horizontalAlignment = "right"
#   config.opacity = 0
#   variable = Scene_Text.read("Text:", "center", 30, true, config)
#
#   # Open a window whose title is "Text:", text is centered, allows to enter
#   # up to 20 characters, writing is left-to-right, window is partially
#   # transparent
#   # config = Scene_Text_Config.new
#   # config.opacity = 128
#   # variable = Scene_Text.read("Text:", "center", 20, true, config)
#==============================================================================

module Text_Input
  ACCEPTED_KEYS = {
    :k0 => 48, :k1 => 49, :k2 => 50, :k3 => 51, :k4 => 52,
    :k5 => 53, :k6 => 54, :k7 => 55, :k8 => 56, :k9 => 57,

    :kA => 65, :kB => 66, :kC => 67, :kD => 68, :kE => 69, :kF => 70,
    :kG => 71, :kH => 72, :kI => 73, :kJ => 74, :kK => 75, :kL => 76,
    :kM => 77, :kN => 78, :kO => 79, :kP => 80, :kQ => 81, :kR => 82,
    :kS => 83, :kT => 84, :kU => 85, :kV => 86, :kW => 87, :kX => 88,
    :kY => 89, :kZ => 90,

    :kCOLON     => 186, :kQUOTE     => 222, :kSPACE      => 32,
    :kCOMMA     => 188, :kPERIOD    => 190, :kSLASH      => 191,
    :kBACKSLASH => 220, :kLEFTBRACE => 219, :kRIGHTBRACE => 221,
    :kMINUS     => 189, :kEQUAL     => 187, :kTILDE      => 192,
  }
end



#==============================================================================
# ** Scebe_Text_Config
#------------------------------------------------------------------------------
#  This object contains additional configuration for the text edit window
#==============================================================================

class Scene_Text_Config
  attr_accessor :lines
  attr_accessor :x
  attr_accessor :y
  attr_accessor :width
  attr_accessor :height
  attr_accessor :opacity

  #--------------------------------------------------------------------------
  # * Object Initialization: set default values
  #--------------------------------------------------------------------------
  def initialize
    @window  = nil
    @lines   = 6
    @x       = 0
    @y       = Graphics.height - window.fitting_height(lines)
    @width   = Graphics.width
    @height  = window.fitting_height(lines)
    @opacity = 256
    window.dispose
  end
  #--------------------------------------------------------------------------
  # * Access to Properties of Windows
  #--------------------------------------------------------------------------
  def window
    if (@window.nil?)
      @window = Window_Base.new(0, 0, 0, 0)
    end
    @window
  end
  #--------------------------------------------------------------------------
  # * Sets Horizontal Alignment
  #--------------------------------------------------------------------------
  def horizontalAlignment=(position = "center")
    if (position == "left")
      @x = 0
    elsif (position == "right")
      @x = Graphics.width - @width
    else
      @x = (Graphics.width - @width) / 2
    end
  end
  #--------------------------------------------------------------------------
  # * Sets Vertical Alignment
  #--------------------------------------------------------------------------
  def verticalAlignment=(position = "bottom")
    if (position == "top")
      @y = 0
    elsif (position == "center")
      @y = (Graphics.height - @height) / 2
    else
      @y = Graphics.height - @height
    end
  end
end



#==============================================================================
# ** Scene_Text
#------------------------------------------------------------------------------
#  This class shows an input field for the player.
#==============================================================================

class Scene_Text < Scene_MenuBase
  ALIGN    = "center"
  MAX_CHAR = 104
  LTR      = true

  #--------------------------------------------------------------------------
  # * Show a dialog window to the player
  #--------------------------------------------------------------------------
  def self.read(title, align = ALIGN, max_char = MAX_CHAR, ltr = LTR, opts = nil)
    @@text     = ""
    @@title    = title
    @@align    = align
    @@max_char = max_char
    @@ltr      = ltr
    @@opts     = opts.nil? ? Scene_Text_Config.new : opts
    SceneManager.call(Scene_Text)
    Fiber.yield while SceneManager.scene_is?(Scene_Text)
    return @@text
  end
  #--------------------------------------------------------------------------
  # * Start Processing
  #--------------------------------------------------------------------------
  def start
    super
    @edit_window  = Window_TextEdit.new(@@title, @@align, @@max_char, @@ltr,
      @@opts)
    @edit_window.set_handler(:ok, method(:on_input_ok))
  end
  #--------------------------------------------------------------------------
  # * Set text when done
  #--------------------------------------------------------------------------
  def on_input_ok
    @@text = @edit_window.text
    @@opts.window.dispose
    return_scene
  end
end



#==============================================================================
# ** Window_TextEdit
#------------------------------------------------------------------------------
#  This window allows to edit a text.
#==============================================================================

class Window_TextEdit < Window_Selectable
  include Text_Input
  #--------------------------------------------------------------------------
  # * Public Instance Variables
  #--------------------------------------------------------------------------
  attr_accessor :text

  #--------------------------------------------------------------------------
  # * Object Initialization
  #--------------------------------------------------------------------------
  def initialize(title, align = "center", max_char = 104, ltr = true, opts = nil)
    opts = opts.nil? ? Scene_Text_Config.new : opts
    super(opts.x, opts.y, opts.width, opts.height)
    self.opacity = opts.opacity

    @text     = ""
    @title    = title
    @align    = align
    @max_char = max_char
    @ltr      = ltr
    @opts     = opts
    @index    = @text.size
    activate
    refresh
  end
  #--------------------------------------------------------------------------
  # * Revert to Default Text
  #--------------------------------------------------------------------------
  def restore_default
    @text = ""
    @index = @text.size
    refresh
    return !@text.empty?
  end
  #--------------------------------------------------------------------------
  # * Get Character Width
  #--------------------------------------------------------------------------
  def char_width
    text_size($game_system.japanese? ? "‚ " : "A").width
  end
  #--------------------------------------------------------------------------
  # * Get Number of Columns
  #--------------------------------------------------------------------------
  def max_col
    [(@opts.width - 32) / char_width, @max_char].min
  end
  #--------------------------------------------------------------------------
  # * Get Left Padding
  #--------------------------------------------------------------------------
  def left(n)
    return 10                                if @align == "left"
    return (width - 32 - n * char_width)     if @align == "right"
    return (width - 32 - n * char_width) / 2 # if align == "center"
  end
  #--------------------------------------------------------------------------
  # * Get Rectangle for Displaying Item
  #--------------------------------------------------------------------------
  def item_rect(index)
    index -= 1 if index == @max_char
    x = index % max_col
    y = index / max_col
    n = [(@max_char - y * max_col), max_col].min

    x = left(n) + x * char_width
    x = width   - x - 48 if not @ltr
    y = 24      + y * (line_height + 4)
    Rect.new(x, y, char_width, line_height)
  end
  #--------------------------------------------------------------------------
  # * Get Underline Rectangle
  #--------------------------------------------------------------------------
  def underline_rect(index)
    rect = item_rect(index)
    rect.x += 1
    rect.y += rect.height
    rect.width -= 2
    rect.height = 2
    rect
  end
  #--------------------------------------------------------------------------
  # * Get Underline Color
  #--------------------------------------------------------------------------
  def underline_color
    color = normal_color
    color.alpha = 48
    color
  end
  #--------------------------------------------------------------------------
  # * Draw Underline
  #--------------------------------------------------------------------------
  def draw_underline(index)
    contents.fill_rect(underline_rect(index), underline_color)
  end
  #--------------------------------------------------------------------------
  # * Draw Text
  #--------------------------------------------------------------------------
  def draw_char(index)
    rect       = item_rect(index)
    rect.x     += 4
    rect.width += 4
    change_color(normal_color)
    draw_text(rect, @text[index] || "")
  end
  #--------------------------------------------------------------------------
  # * Draw Title
  #--------------------------------------------------------------------------
  def draw_title
    draw_text(0, 0, self.width, line_height, @title, 1)
  end
  #--------------------------------------------------------------------------
  # * Refresh
  #--------------------------------------------------------------------------
  def refresh
    contents.clear
    draw_title
    @text.size.times {|i| draw_char(i) }
    @max_char.times  {|i| draw_underline(i) }
    cursor_rect.set(item_rect(@index))
  end
  #--------------------------------------------------------------------------
  # * Handle Process
  #--------------------------------------------------------------------------
  def process_handling
    return unless open? && active
    process_delete if Input.repeat?(:kBACKSPACE)
    process_abort  if Input.trigger?(:kESC)
    process_ok     if Input.trigger?(:kENTER)
    process_keyboard
  end
  #--------------------------------------------------------------------------
  # * Check Input From Keyboard
  #--------------------------------------------------------------------------
  def process_keyboard
    ACCEPTED_KEYS.each {|key|
      if Input.repeat?(key[0])
        c = (key[0] != :kSPACE) ? Keyboard.add_char(Ascii::SYM[key[0]]) : " "
        process_add(c)
        Sound.play_ok
      end
    }
  end
  #--------------------------------------------------------------------------
  # * Add One Character
  #--------------------------------------------------------------------------
  def process_add(c)
    return if @index > @max_char
    if @index == @max_char
      @text[@index - 1] = c
    else
      @text  += c
      @index += 1
    end
    refresh
  end
  #--------------------------------------------------------------------------
  # * Delete One Character
  #--------------------------------------------------------------------------
  def process_delete
    return if @index == 0
    @index -= 1
    @text  = @text[0, @index]
    Sound.play_cancel
    refresh
  end
  #--------------------------------------------------------------------------
  # * Abort Text Input
  #--------------------------------------------------------------------------
  def process_abort
    restore_default
    Sound.play_cancel
    call_ok_handler
  end
  #--------------------------------------------------------------------------
  # * Complete Text Input
  #--------------------------------------------------------------------------
  def process_ok
    Sound.play_ok
    call_ok_handler
  end
end





#==============================================================================
# ** Game_Interpreter
#------------------------------------------------------------------------------
#  An interpreter for executing event commands. This class is used within the
# Game_Map, Game_Troop, and Game_Event classes.
#==============================================================================

class Game_Interpreter
  #--------------------------------------------------------------------------
  # * Insert a text
  #--------------------------------------------------------------------------
  def text_input(title, align = "center", max_char = 103, ltr = true, opts = nil)
    Scene_Text.read(title, align, max_char, ltr, opts)
  end
end

This script is also available on PasteBin: http://pastebin.com/dh16PCaj.

Changelog:

1.1 [http://pastebin.com/HST0A6bJ] Fixed a memory leak: windows did not get properly disposed. Backward compatible.
1.1rc [http://pastebin.com/dh16PCaj] Added options to manipulate the text edit window (position, size, opacity); manipulation is obtained through the new Scene_Text_Config class. Backward compatibile. Activating the scene with no additional config object falls back to previous version.
1.0 [http://pastebin.com/TYtbDDPy] Initial release.

FAQ

Q: How do I store the inserted text into a game variable?

A: See this comment.

Q: How do I insert newlines?

A: This is currently not supported. A workaround is explained in this comment.

Q: How do I check inserted text to prepare a response?

A: You can use the script to store inserted text into a variable, then you can perform any check you like. For an example, see this comment.

Q: How can I change windows size, position and opacity?

A: Be sure to have version 1.1rc (or later) installed, then check examples in this page.

Credit and Thanks
- erpicci, author
- Neon Black, for his Keyboard Input Script
- Tsukihime, for his Simple Text Input script, which I studied to make my own

- Sixth, for spotting a memory leak in version <1.1 and suggesting how to fix

Features Mentioned

Plug and play
Type directly from keyboard
Use enter to confirm your input
Use backspace to delete last character
Use "Esc" to quit the input mode (input process will result in an empty string)
No known compatibility issues
Integrates seamlessly with window system
Additional window configuration (position, size, opacity)

Downloads / Referenced Files

Log in to download

License / Terms Note

It is completely free, both for commercial and non-commercial use. All you are asked to do is to give me credits for the script. Features Plug and play Type directly from keyboard

Referenced Images / Attachments

Creator Claims / Removal

If you are the original creator and want this listing reassigned, edited, or removed, join BMMPlay and contact the moderators with proof that matches the original RPG Maker Web profile, linked GitHub, itch.io page, or another public creator identity.

Community Bring the question. Leave with new ideas. Join the Discussion

#comment-382950 #comment-526010 #comment-611844

Replies (0)

No replies yet.

0 replies 5 views

NEBULA by Anker Capsule II Mini Projector Portable Android TV projector for movie nights, gaming, and indoor or outdoor viewing. View on Amazon

Shopping Cart

Filter

Rpg Maker Developers Group
